SL0014 SMARTlift Crane Synchronisation Procedure

Version 1

SMARTlift

1 Dec 06

Crane synchronisation is available through the LCD display screen menu structure.

Synchronisation is only effective when low speed is selected on the radio remote.

Set the correct engine speed or oil flow rate.
If using Power Pack version: Check the engine maximum speed is 2800 rpm.

If using PTO version: Set the truck engine rpm to obtain 100-120 l/min oil flow to the Sidelifter.
On the remote control, select low speed and Arm mode.
On the LCD display screen, go to the Main Menu and select Crane Synchronisation.
Enter the PIN number provided with this manual by turning the display dial and pressing it when the correct digit appears, then turning the dial to go to the next field and pressing, and turning to select the number etc.

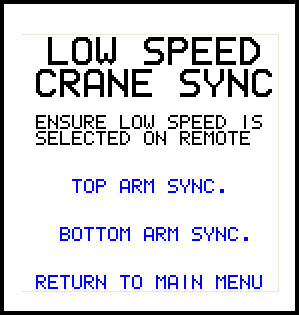

When the correct PIN is entered the Crane Synchronisation menu appears as shown below
Select Top Arm Sync, and the Top Arm screen is displayed as shown below.
On the remote control, select both top arms up with the joysticks at full deflection and time the arms in seconds, over their full stroke.

	SB330	SB361	SB401	SB362	SB450
Top Arm Up	48 sec	52 sec	54 sec	48 sec	54 sec
Top Arm Down	30 sec	32 sec	35 sec	30 sec	35 sec
Bottom Arm Up	65 sec	90 sec	90 sec	65 sec	90 sec
Bottom Arm Down	50 sec	70 sec	70 sec	50 sec	70 sec

If the time of either or both does not match the time in the table above, you will need to adjust the percentage values on the screen until it does. To do this, select the appropriate function by turning the dial then pressing it. You can then adjust the value up or down by turning the dial back or forward, and then save the new value by pressing the dial again.

8. Repeat for the bottom arms.
