S0024 Repair SB330 Stabiliser Housing H Pin

The following is a procedure for repairing the H pin when cracking occurs in the weld around the H pin boss.

Removal of cracked weld:

The removal of cracked welding must be carried out. It requires the following:

1. The weld around the boss needs to be removed to the dimensions shown in figure 1. The removal depth of weld required should be 10mm as shown in figure 1. If the crack continues into the boss, then the boss needs to be removed and a different procedure is required. If the crack exceeds the diameter of 96mm then the web will need to be replaced and a different procedure is to be used.
2. After the weld material has been removed, the boss needs to be welded back to web plate to the weld details in figure 2, and to the weld specificationWP-34538.

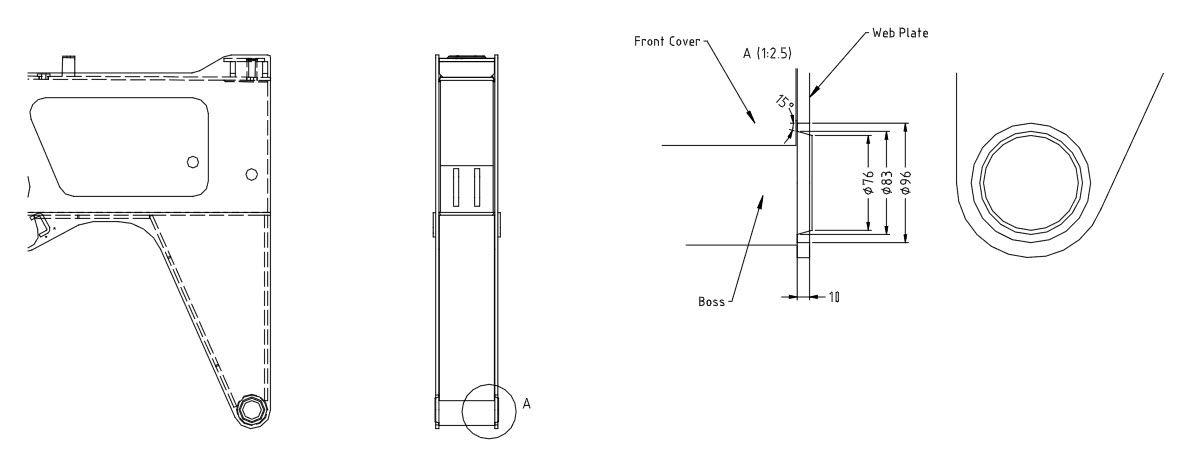

Figure 1: Weld material removal required

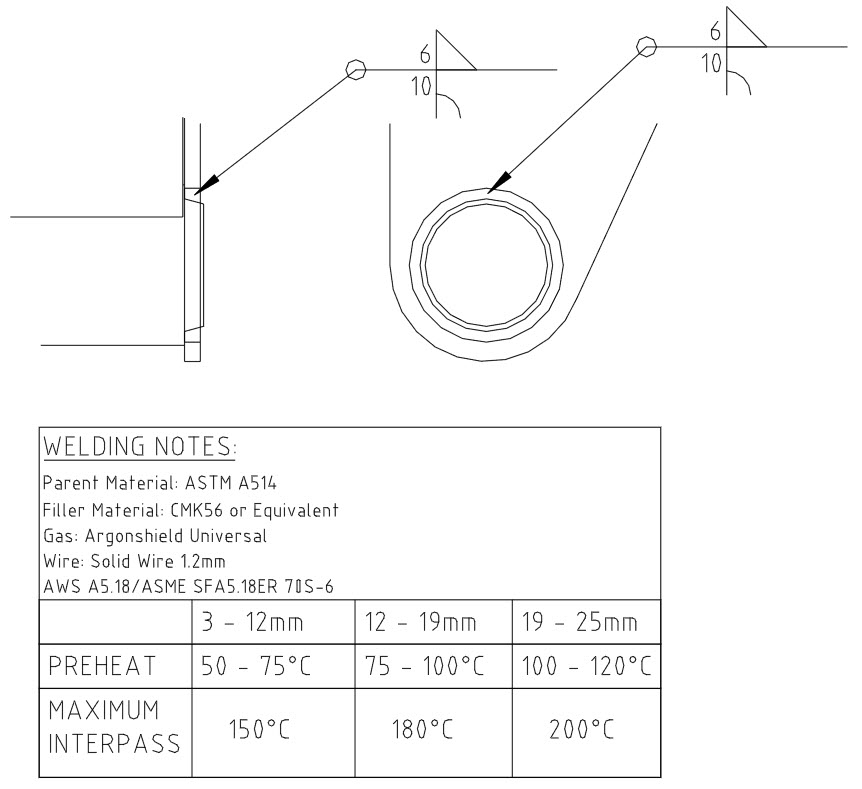

Figure 2: Welding requirements, weld to weld specification WP-34538
